Description
Upgraded Twin Weber 34ICT carburettor kit to suit VW type 1 air cooled engines featuring hex bar linkage, high flow air filters and heat insulator gaskets
Genuine Weber 34 ICT carburettors – not Chinese copies
Now fitted with F6 emulsion tubes and 150 needle valves

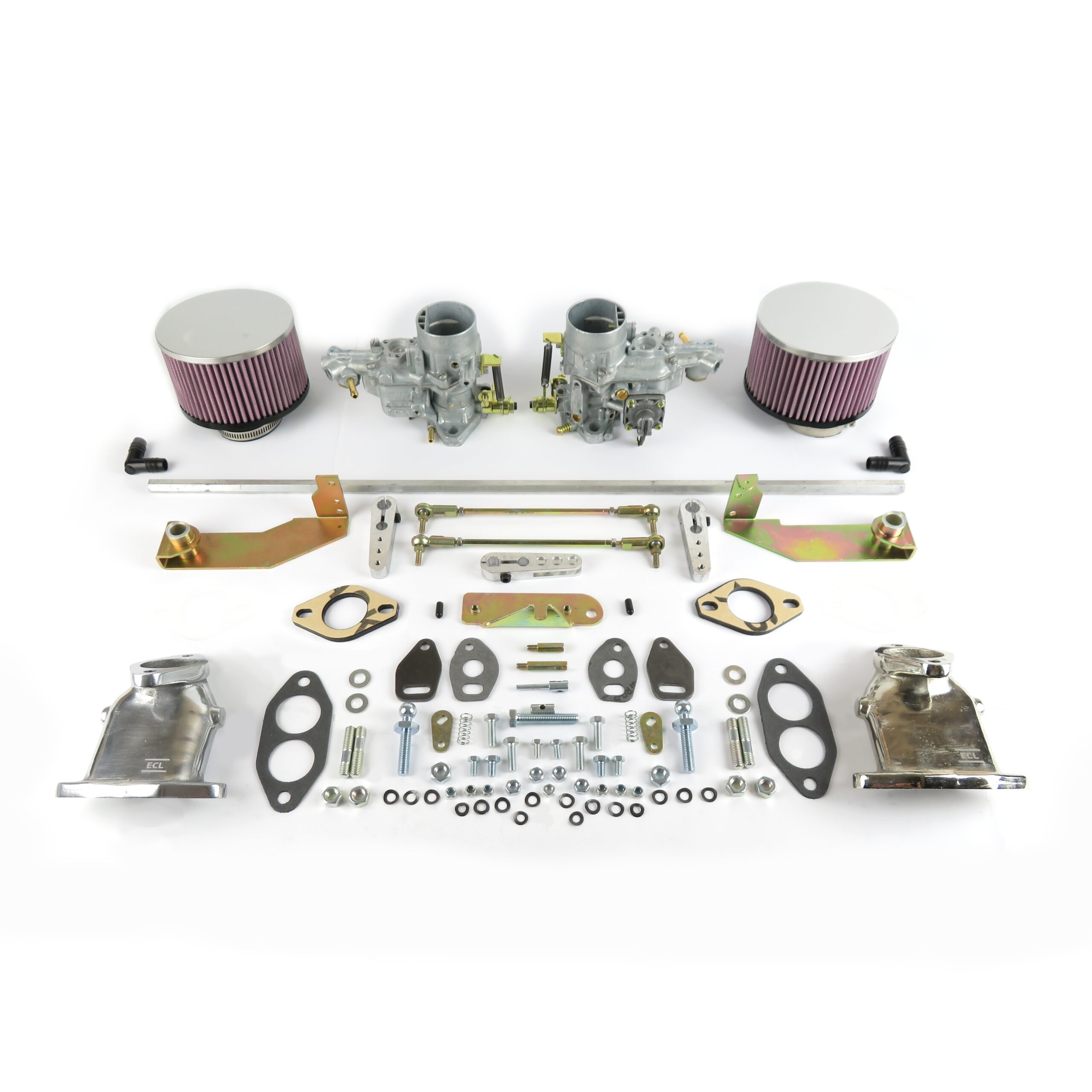

This kit includes:
- Genuine Weber 34 ICT carburettors jetted to suit.
- Hexagon bar linkage kit with metal rose joints and polished lever arms.
- Eurocarb twin port manifolds with top and bottom gaskets, studs, nuts & washers.
- Cone air filters supplied – not round as pictured
- Pre-heater blanking plates and gaskets.
- Heat insulators between carburettors and manifolds
- Blanking caps for carburettor vacuum take-offs
Approximate height of assembly 300mm, and from engine stud centre, 90mm wide on the left side and 100mm on the right.
These carburettors are re-jetted to suit engine size. Please note that whilst this re-jetting works very well for 95% of applications based upon many years of experience, it is not guaranteed to be perfect in every instance. Some fine-tuning may occasionally be necessary.
The use of a fuel cut off solenoid is also advised, to avoid fuel syphoning into the engine due to the position of the fuel tank.
