11570

11570 PHF Slide – current type

£55.85£58.00 ex. VAT

Clear
Part number: 11570 Categories: , . Tags: , , , , , .

Description

Note there are 2 variants of this slide – early and current, the current slides part number 11570 will have to be modified to fit the early carburettors.

If your original slide was the 8553 type and no longer available, you can use the 11570 part number but will need to machine part of the ramp off to use them with your carbs.

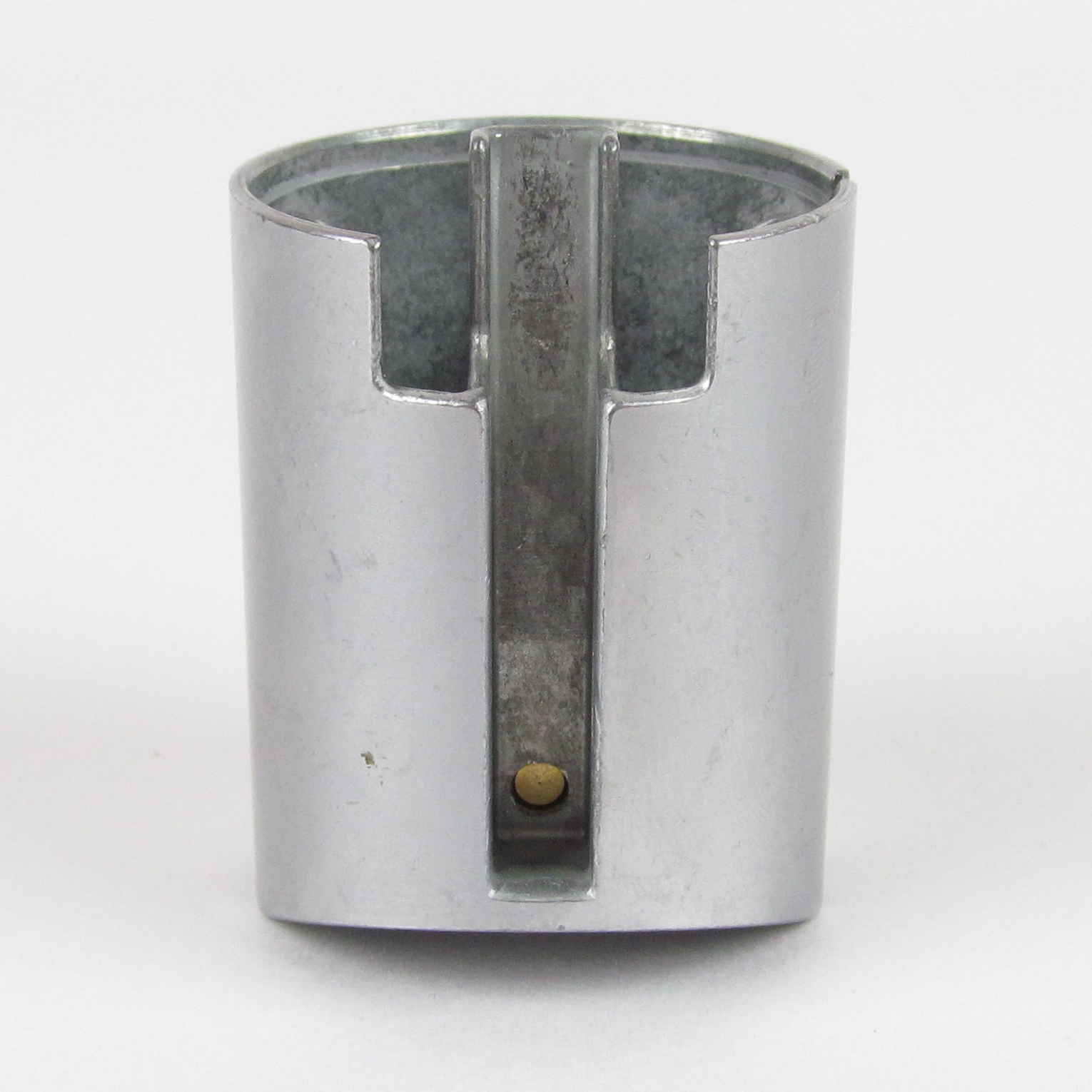

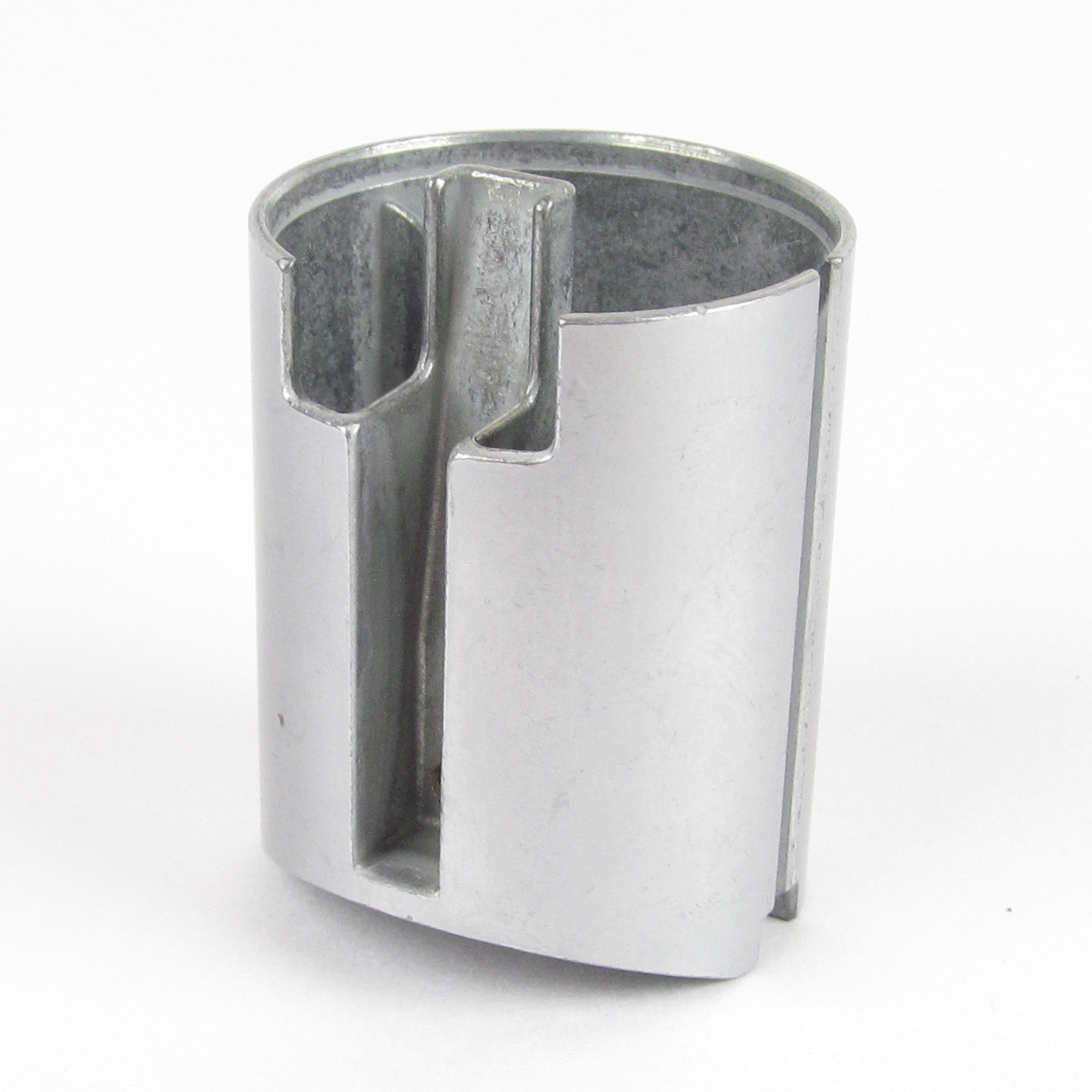

The important difference is the width of the stop screw ramp – please see picture:-

p/n 8553 Ramp slide 4.6mm wide p/n 11570

Ramp slide 6.2mm wide

Please measure your existing slides before purchasing a replacement.

View Pumpramp



(1slide)

Additional information

Variant

PHF Slide 501, PHF Slide 503, PHF Slide 507, PHF Slide 602, PHF Slide 603, PHF Slide 604, PHF Slide 702, PHF Slide 703
