Description
Brand new Dell’Orto PHDG carburettor range!
Key features of the PHDG:
- Range of sizes from 18 to 24 mm for wide versatility of use. Centred venturi for a more efficient flow.
- Screw-on cap on the throttle valve for easier maintenance.
- Aluminium alloy for the body, bowl, and throttle valve to reduce weight and help heat dissipation.
- Wide range of calibrated parts available to allow for precise tuning.
- Advanced finishing, such as anti-wear treatments on the throttle valve and anodizing of some aluminium parts to ensure durability and reliability.

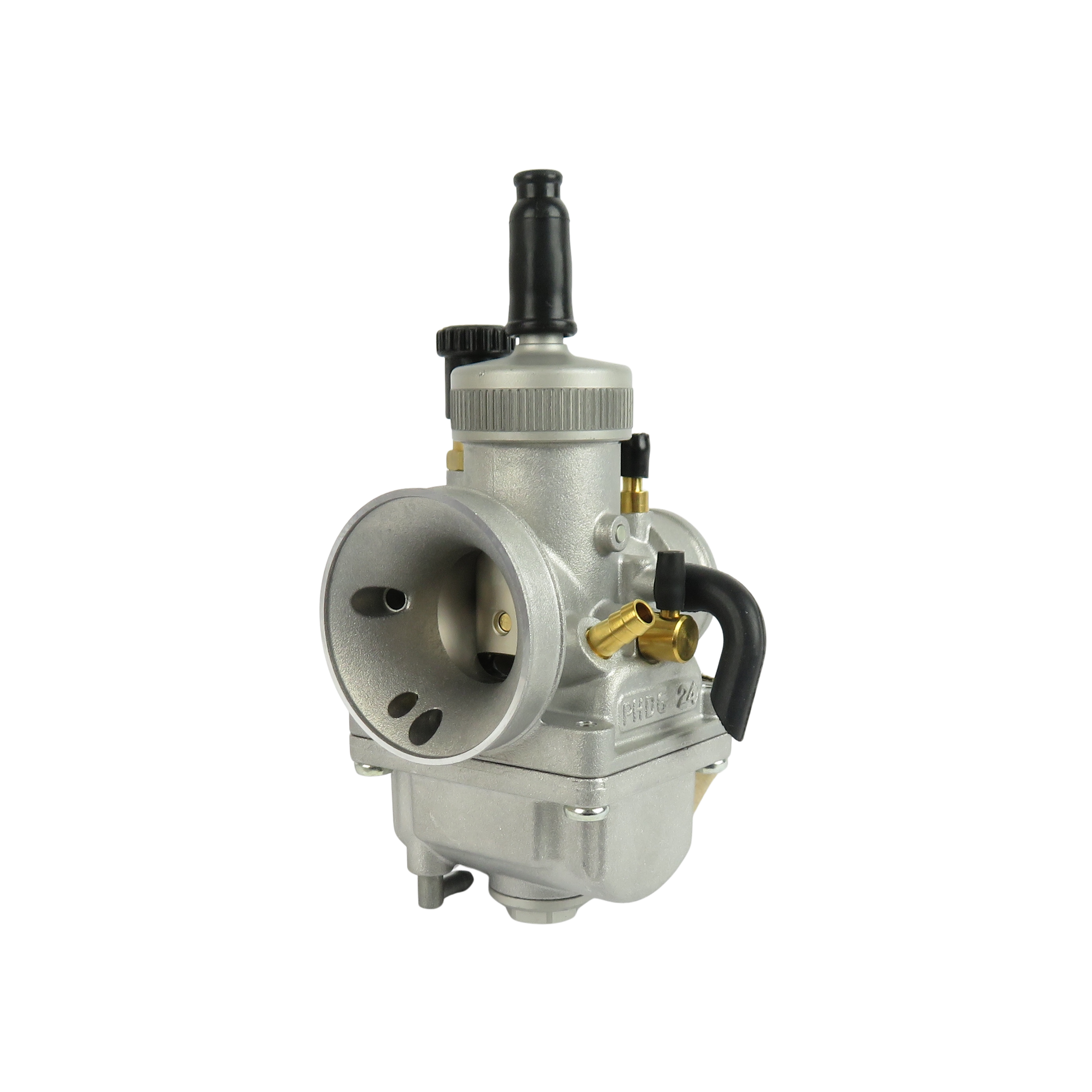

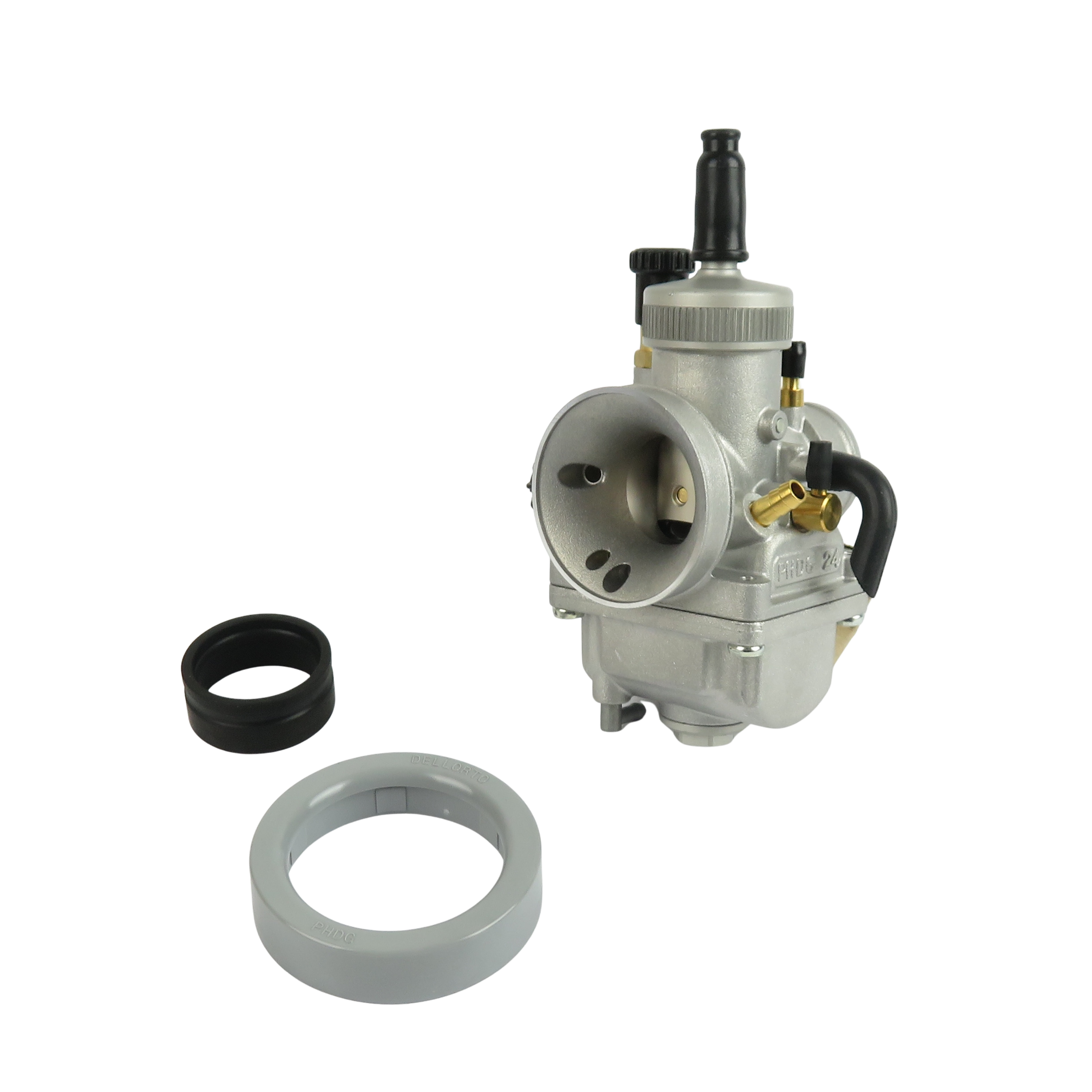

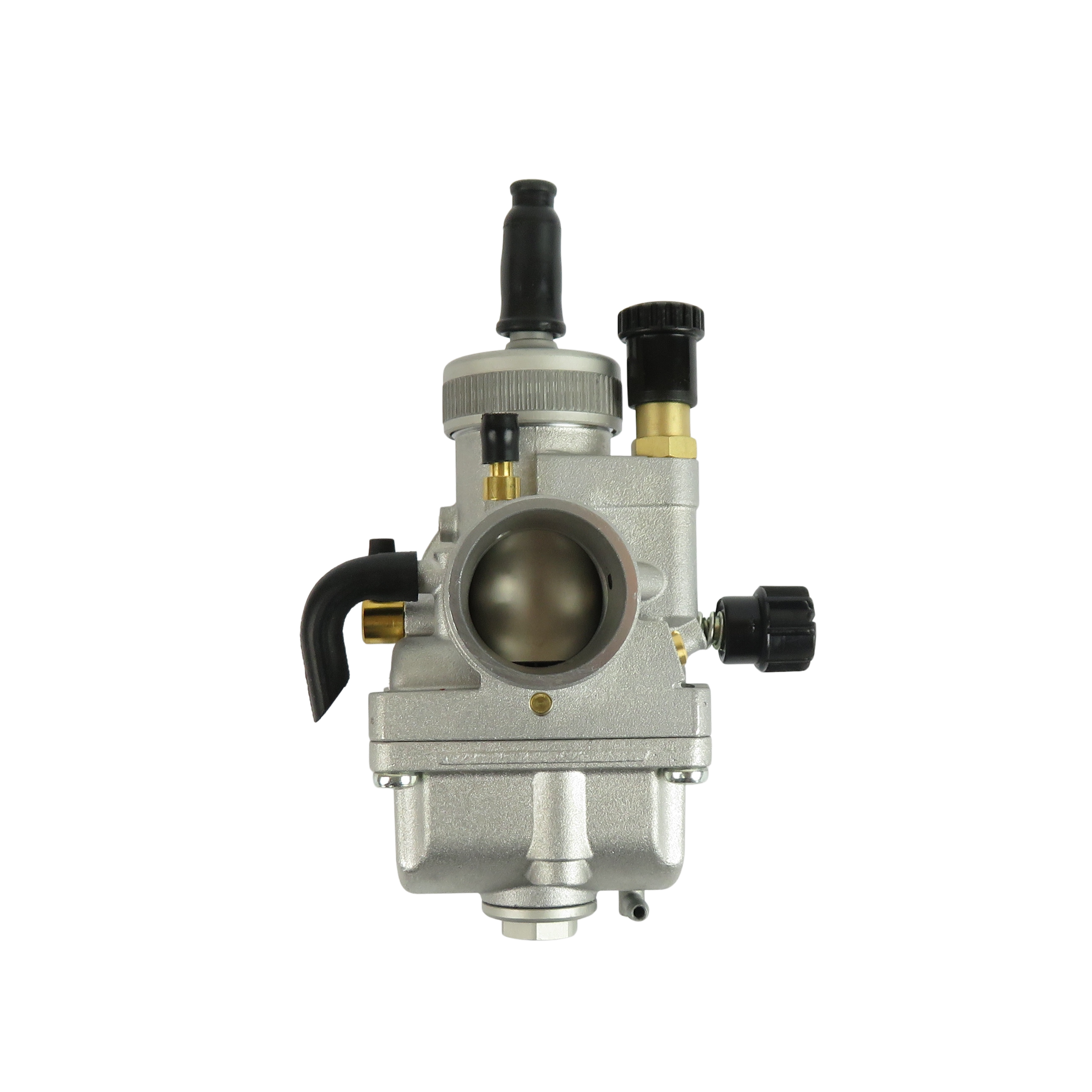

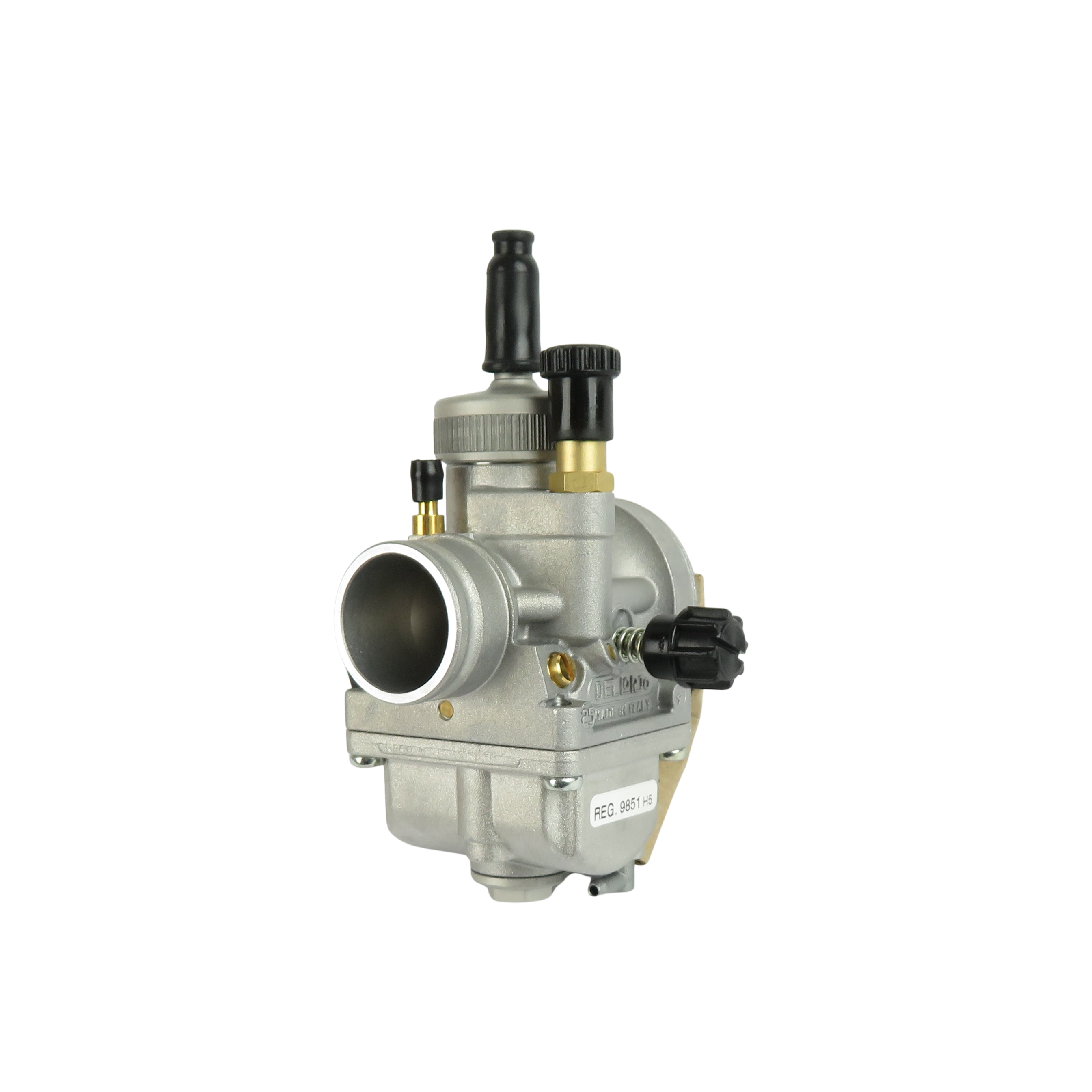

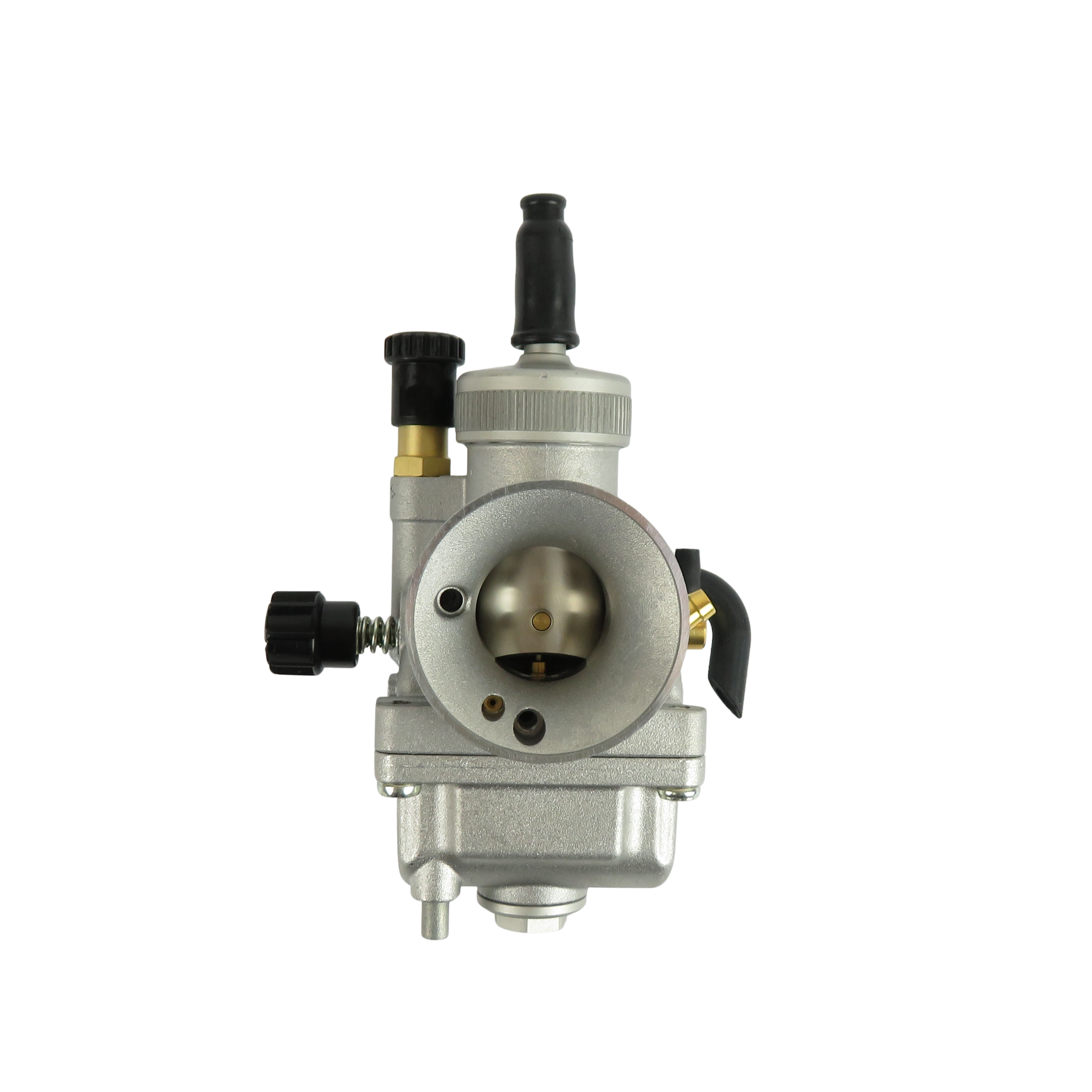

R9851 Dell’Orto PHDG 24 carburettor:
31mm Engine connection – 36mm adapter included.
46mm Air filter connection – 60mm adapter included.
Can be jetted to fit any application.
Standard jetting:
- 40 Slide
- W7 needle
- 112 Main jet
- 262AU atomiser
- 55 Idle jet
- 60 Choke jet
- 225 Fixed needle valve seat
