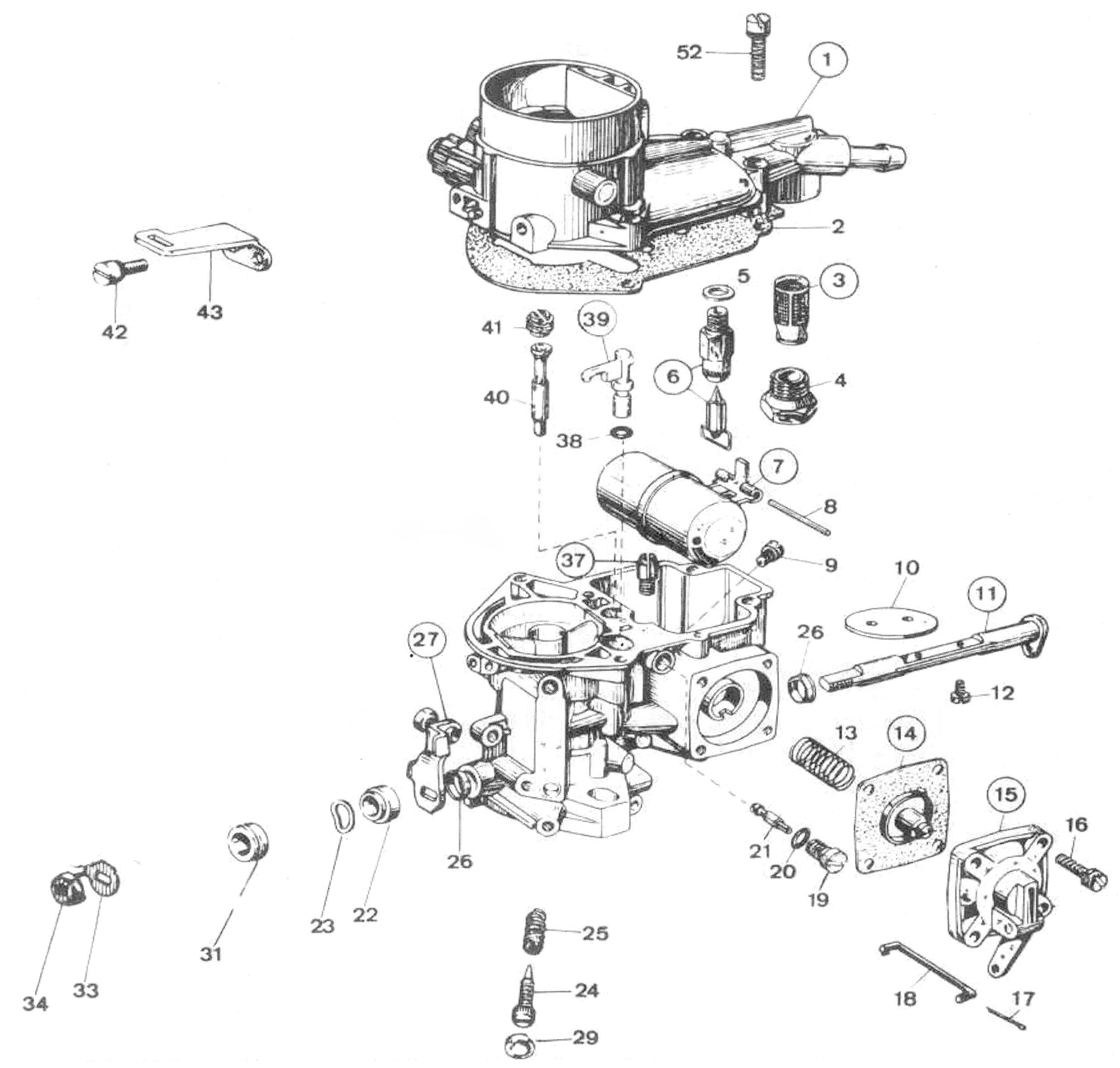

21 - 74409 Idle jet 19 - 52570.009 Idle jet holder 20 - 41565.019 O ring 18 - 61280.020 Pump operating rod 13 - 47600.107 Diaphragm spring 11 - 10015.450 Throttle spindle 9 - 73801 Main jet 8 - 52000.010 Float pin 7 - 41015.019 Float 42 - 64700.012 Screw 43 - 58490.016 Bracket 52 - Screw 34 - 34715.014 Nut 33 - 55520.002 Lock tab washer 31 - 12750.058 Spindle bush 23 - 55530.002 Washer 22 - 12765.021 Bush for spindle lever 25 - 47600.007 Spring 24 - 64750.048 Mixture screw 17 - 32610.005 Split pin 16 - 64695.012 Screw with washer 15 - 32486.002 Pump diaphragm cover assembly 14 - 47407.261 ICT Pump diaphragm 12 - Butterfly screw 27 - 45048.054 Throttle lever 26 - 41575.010 Spindle shaft seal 41 - 77201 Air corrector 40 - 61440 Emulsion tube 39 - 76407 Pump jet 38 - 41565.039 O ring 6 - 79507 Needle valve 3 - 37022.002 Fuel inlet filter 4 - 61002.018 Brass filter cover 10 - 64005.007 Throttle butterfly 37 - 79701 Pump exhaust/spill valve 26 - 41575.010 Spindle shaft seal 1 - 31706.055 Top cover 2 - 41700.010 Top cover gasket 5 - 83102.070 Needle valve gasket
